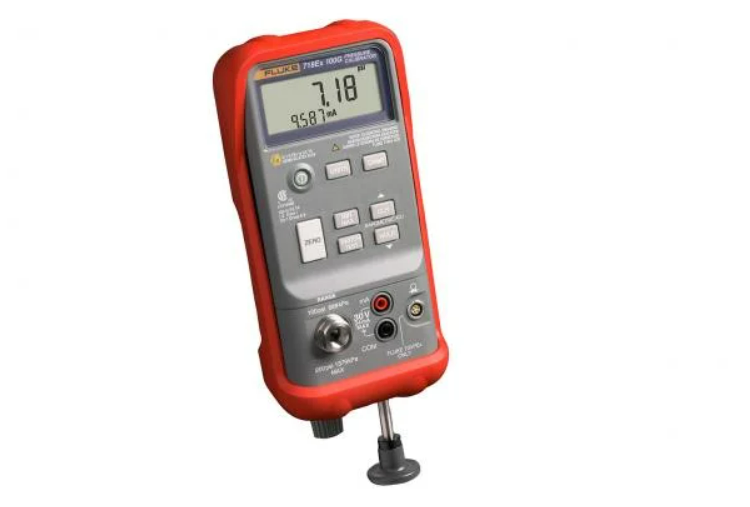

The Fluke 718Ex Intrinsically Safe Pressure Calibrator is a powerful intrinsically safe, self contained pressure calibrator for usage in explosion endangered areas.
Features
Measure pressure, 0.05% of full scale with internal sensor – 1/8 NPT pressure fitting – Compatible with non-corrosive gasses and liquids
Pressure measurement to 700 bar using any of the Fluke-700Pxx Pressure Modules
Wide range of selectable measurement units for pressure
Current measurement with 0.015% accuracy and 0.001mA resolution
Simultaneous pressure and current measurement for easy P/I testing
24 volt loop power supply
Zero, Min-Max, Hold and Damping functions
Pressure switch test captures set, reset and deadband values
Newly designed built-in pressure/ vacuum hand pump with vernier and bleed valve helps protect the pump from damage and is easier to clean
