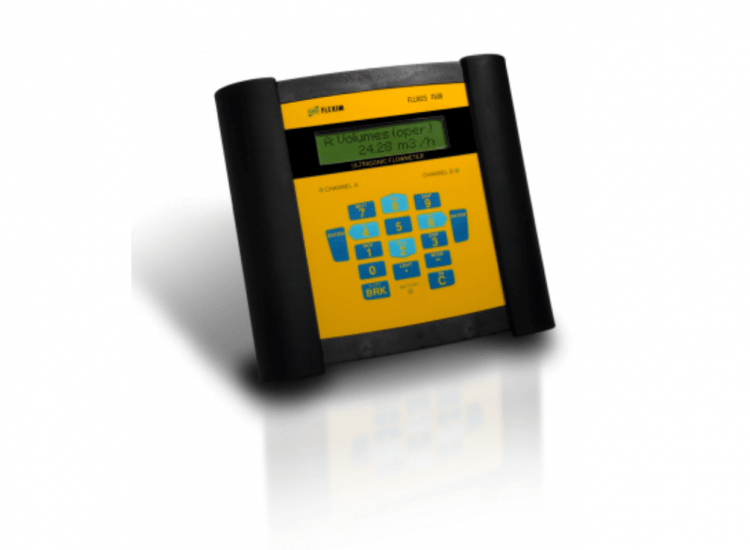

The new FLUXUS F608 Zone 2 portable flow meter has all of the features and benefits of the F601 and has been IECEx certified for use in hazardous areas. Hot work permits are a thing of the past, with the world's only IECEx-certified, ultrasonic, truly portable flow meter. There is no compromise when it comes to safety.
The portable flow meter utilises carbon fiber housing, the transducers have stainless steel housing and conduit cable and are hermetically sealed. This ensures rugged protection against impacts, water ingress and oils. The F608 portable flow meter still has the same battery performance as the F601, with over 14 hours or measurement between charges.
The complete installation can take less than 5 minutes, this includes loading in all the parameters, physically installing the transducers and commencing the measurement. The F608 can handle practically any application, be it plastic pipes, exotic fluids, very small or very large pipes, you name it. With special fixtures known as Wave Injectors, the F608 portable flow meter can even measure up to 400°C!
Features
Features
Precise bidirectional and highly dynamic flow measurement
with the non-invasive clamp-on technology
High precision at fast and slow flow rates, high temperature
and zero point stability
Portable, easy-to-use flow transmitter with 2 flow channels,
multiple inputs, an integrated data logger with a serial interface
Extremely resistant carbon fiber housing
Covered by FM Class I Div. 2 certification
Compact and very lightweight, allowing the measuring system
to be easily carried as personal luggage, e.g., for offshore visits
Water tight; resistant against oil, many liquids and dirt
Li-Ion battery provides up to 25 hours of measurement operation
Automatic loading of calibration data and transducer detection
for a fast and easy set-up (less than 5 min), providing precise
and long-term stable results
User-friendly design
Transducers available for a wide range of inner pipe diameters
and fluid temperatures ( )
Rugged transducers (FM Class I Div. 2, resistant to rough environments and humidity)
Robust, water-tight (NEMA 4) transport case with comprehensive accessories
HybridTrek automatically switches between transit time and
NoiseTrek mode of measurement when high particulate flows
are encountered
QuickFix for fast mounting of the flow transmitter in difficult
conditions
Measurement is unaffected by fluid density, viscosity and solid
content (max. 10 % of volume)
Applications
Designed for the following industries:
Upstream (on- and offshore)
Midstream and downstream (pipelines and refineries)
Chemical industry
Energy sector (e.g., HVAC, geothermal, power plants)
