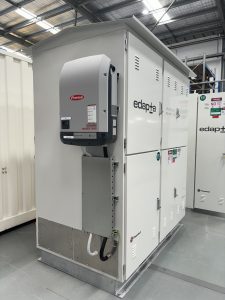

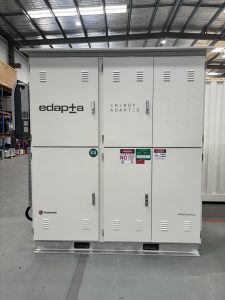

Powertech was engaged to provide a Stand-Alone Power System that is outdoor rated and has a storage capacity of up to 150kWh.
The Stand-Alone Power System was designed, assembled and commissioned by Powertech in the Malaga (Perth office), Western Australia.

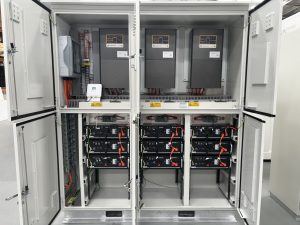

This build utilises 3 x Selectronic SPMC482-AU Battery Inverters (22.5kVA output), a Fronius Symo 10.0 PV Inverter and 45kWh of storage via Pylontech LiFePO4 batteries.
The Edapta SAPS-150 is designed to be highly configurable and is available with the following specifications:
+ Output Voltage 415V (240V Opt.)
+ Output Frequency 50Hz/60Hz
+ Solar inverter to suit installation (Opt.)
+ Lockable Enclosure
+ Inverter power output 15kVA to 60kVA
+ Onboard storage up to 150kWh
+ Single or three phase options
+ Operating temperature: -10°C to 50°C
+ Generator backup (Opt.)
+ IP65
